Effect of pH on the structural properties and emulsification of myofibrillar proteins of large yellow croaker (Larimichthys crocea)
-
摘要: 为深入探究大黄鱼肌原纤维蛋白(MP)的乳化性，以满足大黄鱼蛋白质高值化开发利用的需求。实验探究了不同pH对大黄鱼MP结构性质及其乳化性的影响。采用pH分别为2、4、6、8、10、12的低盐磷酸缓冲液处理大黄鱼MP，通过SDS-PAGE分析大黄鱼MP降解情况，利用接触角测量仪和荧光分光光度计考察其疏水性变化。将不同pH下大黄鱼MP溶液与大豆油以体积比为1∶1的比例经高速均质制备乳液，并对其乳滴电位、粒径以及乳液的乳析指数进行测定，综合分析在不同pH下乳液的稳定性。SDS-PAGE电泳结果表明，在pH 4时，大黄鱼MP条带颜色较浅，在pH 6~12时，肌球蛋白重链条带基本消失，肌动蛋白条带颜色逐渐加深，且在浓缩胶顶部出现了高分子聚集物。对接触角和荧光光谱的综合分析表明，大黄鱼MP疏水性随pH增加而增加。对不同pH下MP乳液特性分析显示，在pH 8时，乳滴带负电且Zeta电位绝对值大[(49.63±1.52) mV]、粒径较小、乳液稳定性较好，而pH 12条件下容易出现破乳，不利于乳液的稳定。在pH 8时，大黄鱼MP结构更有利于提升乳液稳定性。研究表明，在弱碱性条件下更有利于大黄鱼MP形成稳定的乳液体系。pH对大黄鱼MP结构性质和乳化性的影响探究，有望为大黄鱼MP在食品工业中的开发利用提供理论依据。Abstract: Properties of myofibrillar proteins (MPs) in Larimichthys crocea remain to be further studied to meet the high-value development and utilization of MPs. The purpose of this study is to investigate the effect of different pH on the structural and emulsifying properties of myofibrillar protein in L. crocea. MP from L. crocea was treated with low-salt phosphate buffer at pH 2, 4, 6, 8, 10 and 12, and MP degradation was analyzed by SDS-PAGE. Moreover, the hydrophilicity of MP was investigated by contact angle and fluorescence spectrophotometry. Emulsions were prepared with MP solution at different pH and soybean oil at ratio of 1∶1 (V/V) by high-speed homogenization. The stability of emulsions was determined by analyzing the droplet potential, particle size and the emulsion index of emulsions. At pH 4, the band color of MP in SDS-PAGE was light. At pH 6-12, the myosin heavy chain band largely disappeared; however, the actin band gradually deepened in color and macromolecular aggregates appeared at the top of band. The comprehensive analysis of contact angle and fluorescence spectrum showed that the hydrophobicity of MP increased with pH. Meanwhile, the MP emulsions were negatively charged with the Zeta potential absolute value of (49.63±1.52) mV and small emulsion droplets at pH 8, exhibiting better stability than MP emulsions at other pH values. However, the MP emulsions showed poor emulsion stability and even demulsification occurred at pH 12. The change of MP structure was beneficial to improve the stability of MP emulsions at pH 8. These results can provide a theoretical basis for the development and application of MP from L. crocea in the food industry.
-
Key words:
- Larimichthys crocea /
- myofibrillar protein /
- pH /
- hydrophobicity /
- emulsification
-
-

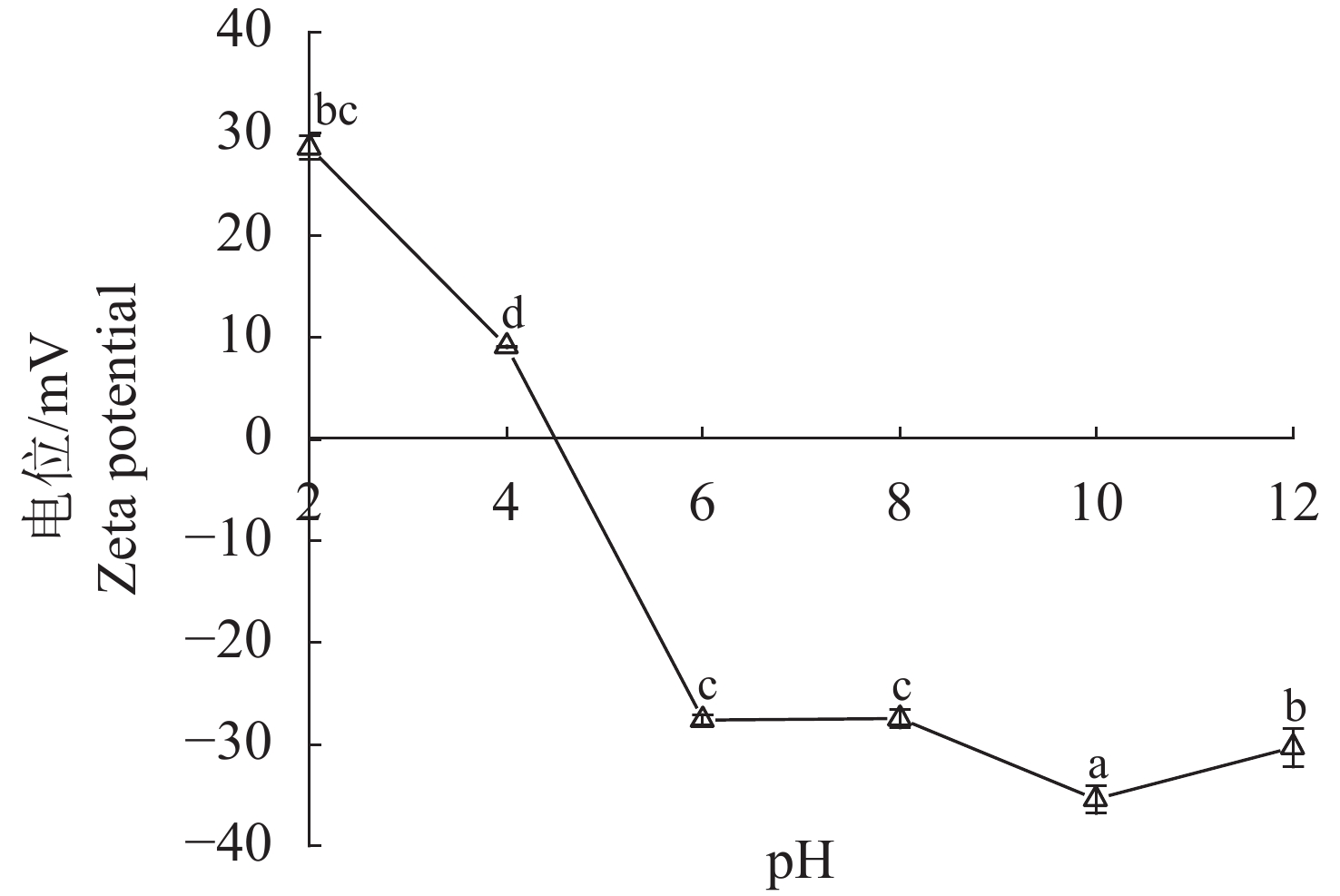

图 1 pH处理大黄鱼肌原纤维蛋白Zeta电位
Figure 1. Zeta potential of myofibrillar proteins of L. crocea treated at different pH values

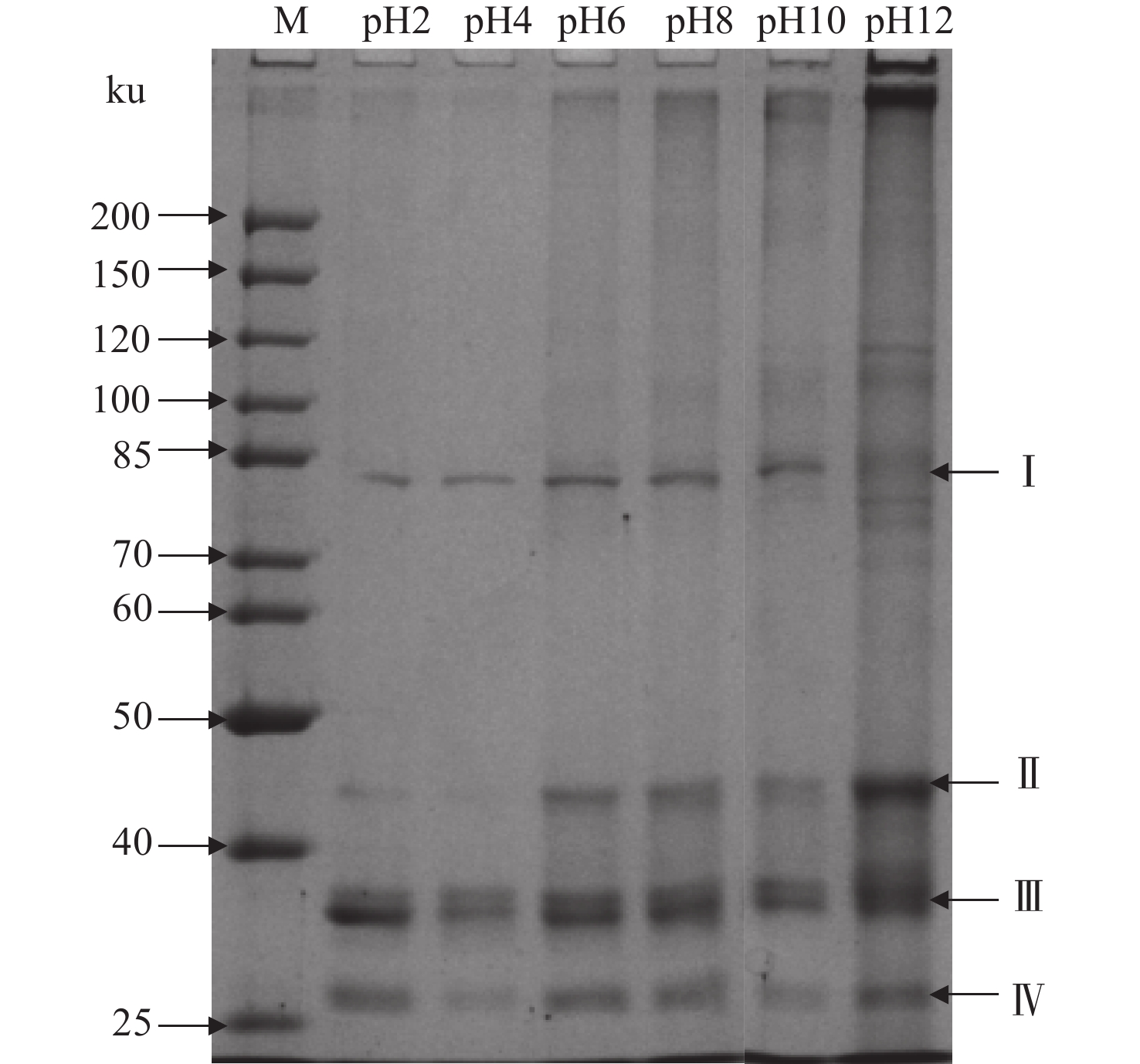

图 2 pH处理大黄鱼肌原纤维蛋白SDS-PAGE电泳图
Figure 2. SDS-PAGE of myofibrillar proteins of L. crocea treated at different pH values
图 4 pH对MP内源荧光强度的影响
Figure 4. Effect of pH on endogenous fluorescence intensity of myofibrillar proteins
图 5 pH处理大黄鱼肌原纤维蛋白乳液的显微观察(40×)
Figure 5. Microscopic observation of myofibrillar protein emulsions of L. crocea treated at different pH values

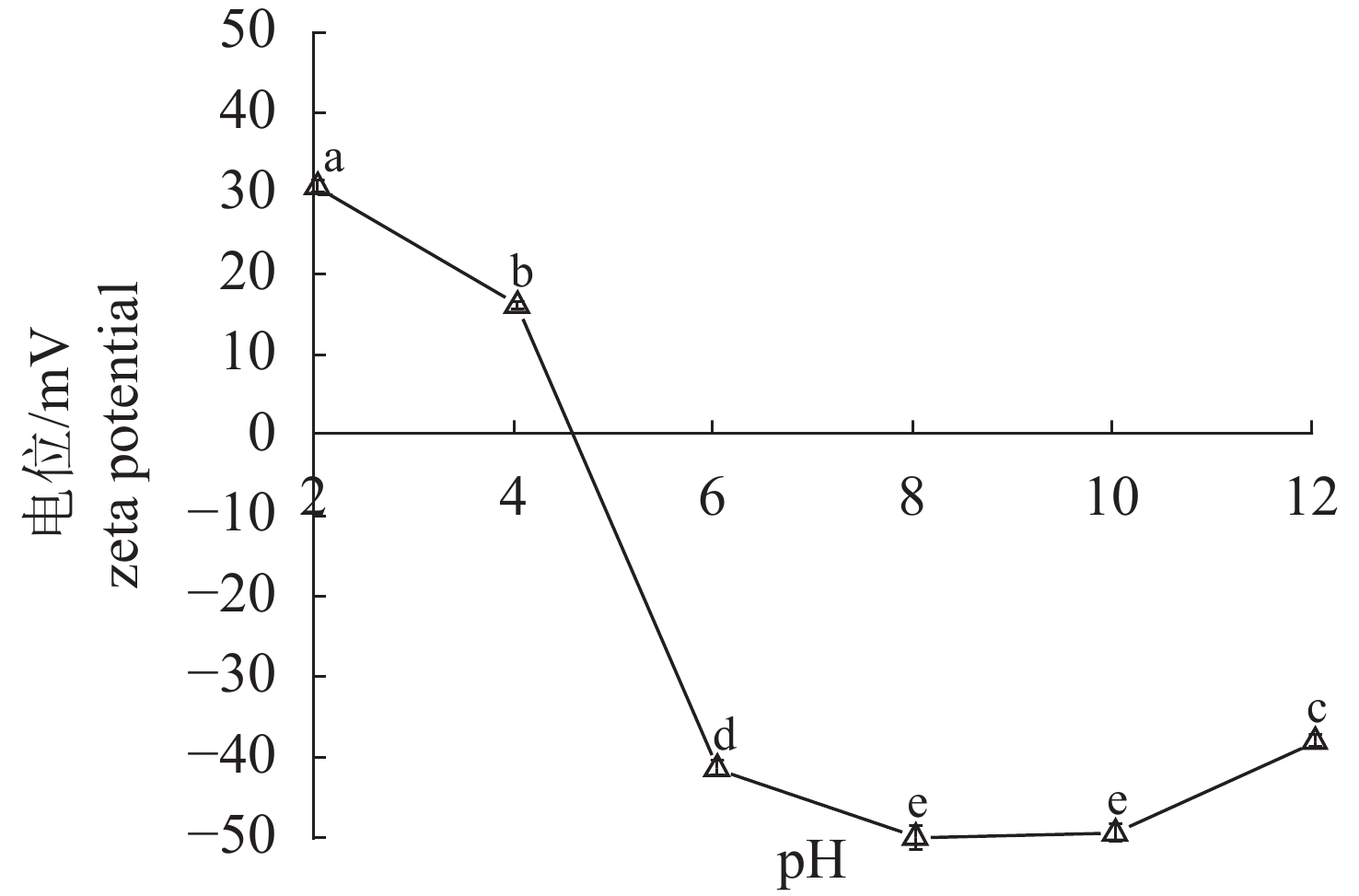

图 6 pH对MP乳液的Zeta电位的影响
Figure 6. Effect of pH on Zeta potential of myofibrillar protein emulsions
-
[1] 吴燕燕, 陶文斌, 郝志明, 等. 含盐量对腌制大黄鱼鱼肉品质的影响[J]. 食品与发酵工业, 2019, 45(21): 102-109.
Wu Y Y, Tao W B, Hao Z M, et al. Effects of different salt concentration on the quality of cultured large yellow croaker (Larimichthys crocea)[J]. Food and Fermentation Industries, 2019, 45(21): 102-109 (in Chinese).
[2] 王笑涵, 姜卉, 吴海涛, 等. 大黄鱼卵分离蛋白乳液的构筑及其体外消化规律[J]. 食品科学, 2020, 41(18): 8-13.
Wang X H, Jiang H, Wu H T, et al. Construction and in vitro digestion properties of Larimichthys crocea roe protein isolate-stabilized emulsion[J]. Food Science, 2020, 41(18): 8-13 (in Chinese).
[3] 杨华, 陆森超, 张慧恩, 等. 超高压处理对养殖大黄鱼风味及品质的影响[J]. 食品科学, 2014, 35(16): 244-249.
Yang H, Lu S C, Zhang H E, et al. Effects of high hydrostatic pressure processing on the flavor and quality of cultured yellow croaker (Larimichthys crocea)[J]. Food Science, 2014, 35(16): 244-249 (in Chinese).
[4] 徐鹏, 柯巧珍, 苏永全, 等. 大黄鱼种质资源保护与利用现状及建议[J]. 水产学报, 2022, 46(4): 674-682.
Xu P, Ke Q Z, Su Y Q, et al. Protection and utilization status and prospect of large yellow croaker (Larimichthys crocea) germplasm resources[J]. Journal of Fisheries of China, 2022, 46(4): 674-682 (in Chinese).
[5] 俞存根, 严小军, 蒋巧丽, 等. 东海岱衢族大黄鱼资源变动的原因探析及重建策略[J]. 水产学报, 2022, 46(4): 616-625.
Yu C G, Yan X J, Jiang Q L, et al. Cause analysis of resources change and reconstruction strategy of Larimichthys crocea Daiqu group in the East China Sea[J]. Journal of Fisheries of China, 2022, 46(4): 616-625 (in Chinese).
[6] 卢涵. 鳙鱼肉低温贮藏过程中蛋白氧化、组织蛋白酶活性与品质变化规律的研究[D]. 北京: 中国农业大学, 2017.
Lu H. Protein oxidation, cathepsins activity and the quality changes of bighead carp (Aristichthys nobilis) during low-temperature storage[D]. Beijing: China Agricultural University, 2017 (in Chinese).
[7] 张登科, 张慧恩, 朱艳杰, 等. 超高压处理对养殖大黄鱼肌原纤维蛋白结构的影响[J]. 食品科学, 2019, 40(9): 61-67.
Zhang D K, Zhang H E, Zhu Y J, et al. Effect of high hydrostatic pressure treatment on myofibrillar protein structure of cultured large yellow croaker[J]. Food Science, 2019, 40(9): 61-67 (in Chinese).
[8] 张晗, 高星, 宣仕芬, 等. 电子束辐照对鲈鱼肉肌原纤维蛋白生化特性及其构象的影响[J]. 食品科学, 2019, 40(13): 81-86.
Zhang H, Gao X, Xuan S F, et al. Effect of electron beam irradiation on biochemical properties and structure of myofibrillar protein from Lateolabrax japonicus meat[J]. Food Science, 2019, 40(13): 81-86 (in Chinese).
[9] Kristinsson H G, Hultin H O. Effect of low and high pH treatment on the functional properties of cod muscle proteins[J]. Journal of Agricultural and Food Chemistry, 2003, 51(17): 5103-5110. doi: 10.1021/jf026138d
[10] 何青. 猪肉肌原纤维蛋白颗粒稳定高内相Pickering乳液的制备及营养输送特性研究[D]. 锦州: 渤海大学, 2020.
He Q. Preparation and nutrient delivery characteristics of high internal phase Pickering emulsion stabled by pork myofibrillar particles[D]. Jinzhou: Bohai University, 2020 (in Chinese).
[11] Zheng S Y, Chen X T, Wu J N, et al. Effect of pH on gelling properties of myofibrillar protein in large yellow croaker (Larimichthys croeca)[J]. Journal of Biobased Materials and Bioenergy, 2019, 13(2): 264-268. doi: 10.1166/jbmb.2019.1837
[12] Du X, Zhao M N, Pan N, et al. Tracking aggregation behaviour and gel properties induced by structural alterations in myofibrillar protein in mirror carp (Cyprinus carpio) under the synergistic effects of pH and heating[J]. Food Chemistry, 2021, 362: 130222. doi: 10.1016/j.foodchem.2021.130222
[13] Hong G P, Min S G, Chin K B. Emulsion properties of pork myofibrillar protein in combination with microbial transglutaminase and calcium alginate under various pH conditions[J]. Meat Science, 2012, 90(1): 185-193. doi: 10.1016/j.meatsci.2011.06.023
[14] Li L Y, Zhao X, Xu X L. Trace the difference driven by unfolding-refolding pathway of myofibrillar protein: emphasizing the changes on structural and emulsion properties[J]. Food Chemistry, 2022, 367: 130688. doi: 10.1016/j.foodchem.2021.130688
[15] 周心雅, 贺稚非, 李洪军, 等. 酸碱度对兔肉肌原纤维蛋白功能性质的影响[J]. 食品与发酵工业, 2017, 43(11): 172-179.
Zhou X Y, He Z F, Li H J, et al. Effect of pH on the functional properties of rabbit myofibrillar protein[J]. Food and Fermentation Industries, 2017, 43(11): 172-179 (in Chinese).
[16] 郭延娜, 吴菊清, 周光宏, 等. 匀浆机转速、pH值和肌原纤维蛋白质浓度对肌原纤维蛋白质乳化特性的影响[J]. 江苏农业学报, 2010, 26(6): 1371-1377.
Guo Y N, Wu J Q, Zhou G H, et al. Effect of speed of homogenizer, pH value and myofibrillar protein con-centration on emulsifying properties of myofibrillar proteins[J]. Jiangsu Journal of Agricultural Sciences, 2010, 26(6): 1371-1377 (in Chinese).
[17] Tang Y, Jiang H, Wu H T, et al. Fabrication and physicochemical characterization of Pseudosciaena crocea roe protein-stabilized emulsions as a nutrient delivery system[J]. Journal of Food Science, 2019, 84(6): 1346-1352. doi: 10.1111/1750-3841.14612
[18] Abdollahi M, Undeland I. A novel cold biorefinery approach for isolation of high quality fish oil in parallel with gel-forming proteins[J]. Food Chemistry, 2020, 332: 127294. doi: 10.1016/j.foodchem.2020.127294
[19] Cao M J, Jiang X J, Zhong H C, et al. Degradation of myofibrillar proteins by a myofibril-bound serine proteinase in the skeletal muscle of crucian carp (Carasius auratus)[J]. Food Chemistry, 2006, 94(1): 7-13. doi: 10.1016/j.foodchem.2004.09.016
[20] Fang Q, Shi L F, Ren Z Y, et al. Effects of emulsified lard and TGase on gel properties of threadfin bream (Nemipterus virgatus) surimi[J]. LWT, 2021, 146: 111513. doi: 10.1016/j.lwt.2021.111513
[21] Ren Z Y, Chen Z Z, Zhang Y Y, et al. Functional properties and structural profiles of water-insoluble proteins from three types of tea residues[J]. LWT, 2019, 110: 324-331. doi: 10.1016/j.lwt.2019.04.101
[22] 闫春子, 夏文水, 许艳顺. 超高压对草鱼肌原纤维蛋白结构的影响[J]. 食品与生物技术学报, 2018, 37(4): 424-428.
Yan C Z, Xia W S, Xu Y S. Effect of high hydrostatic pressure processing on myofibril protein structure of grass carp fillets[J]. Journal of Food Science and Biotechnology, 2018, 37(4): 424-428 (in Chinese).
[23] 丁俭, 隋晓楠, 王婧, 等. 超声处理大豆分离蛋白与壳聚糖复合物对O/W型乳液稳定性的影响[J]. 食品科学, 2018, 39(13): 74-80.
Ding J, Sui X N, Wang J, et al. Effect of ultrasonic treatment on stability of oil-in-water (O/W) emulsion containing soybean protein isolate-chitosan complex[J]. Food Science, 2018, 39(13): 74-80 (in Chinese).
[24] 王旭, 马宁宁, 李昕, 等. 亚麻籽胶-大豆分离蛋白乳状液微滴聚集体的制备及其流变特性[J]. 中国食品学报, 2019, 19(5): 93-100.
Wang X, Ma N N, Li X, et al. Fabrication and rheological properties of heteroaggregated emulsion of oppositely charged flaxseed gum-coated and soy protein-coated oil droplets[J]. Journal of Chinese Institute of Food Science and Technology, 2019, 19(5): 93-100 (in Chinese).
[25] Ren Z Y, Chen Z Z, Zhang Y Y, et al. Effect of heat-treated tea water-insoluble protein nanoparticles on the characteristics of Pickering emulsions[J]. LWT, 2021, 149: 111999. doi: 10.1016/j.lwt.2021.111999
[26] Wang H F, Yang Z, Yang H J, et al. Comparative study on the rheological properties of myofibrillar proteins from different kinds of meat[J]. LWT, 2022, 153: 112458. doi: 10.1016/j.lwt.2021.112458
[27] 彭媛媛, 王昱圭, 汤雪纤, 等. pH值对低酯果胶/酪蛋白酸钠复合体系流变及结构特性的影响[J]. 食品科学, 2019, 40(6): 35-40.
Peng Y Y, Wang Y G, Tang X Q, et al. Effect of pH value on rheological and structural properties of low methoxyl pectin/sodium caseinate composite system[J]. Food Science, 2019, 40(6): 35-40 (in Chinese).
[28] 吴丽萍, 冷小京, 孙雁, 等. 动态光散射和透射电镜法研究pH和NaCl对丝胶蛋白微观结构的影响[J]. 光谱学与光谱分析, 2010, 30(5): 1391-1395.
Wu L P, Leng X J, Sun Y, et al. Analysis of the effects of pH and salt on the conformation of the sericin particles by DLS and TEM measurements[J]. Spectroscopy and Spectral Analysis, 2010, 30(5): 1391-1395 (in Chinese).
[29] 李来好, 孙蕾蕾, 黄卉, 等. 冰藏奥尼罗非鱼片组织蛋白酶与品质变化的相关性分析[J]. 水产学报, 2015, 39(4): 589-597.
Li L H, Sun L L, Huang H, et al. Correlation analysis of cathepsins and quality variations of tilapia (Oreochromis niloticus ♂ × O. aureus ♀) fillets during iced storage[J]. Journal of Fisheries of China, 2015, 39(4): 589-597 (in Chinese).
[30] 赵雪, 邹玉峰, 韩敏义, 等. 酸碱处理技术在肌肉蛋白质分离加工中的应用[J]. 食品工业科技, 2016, 37(11): 395-399.
Zhao X, Zou Y F, Han M Y, et al. A review of the application of isoelectric solubilization/precipitation method in meat protein separation and processing[J]. Science and Technology of Food Industry, 2016, 37(11): 395-399 (in Chinese).
[31] Azadian M, Moosavi-Nasab M, Abedi E. Comparison of functional properties and SDS-PAGE patterns between fish protein isolate and surimi produced from silver carp[J]. European Food Research and Technology, 2012, 235(1): 83-90. doi: 10.1007/s00217-012-1721-z
[32] Linke C, Drusch S. Pickering emulsions in foods-opportunities and limitations[J]. Critical Reviews in Food Science and Nutrition, 2018, 58(12): 1971-1985. doi: 10.1080/10408398.2017.1290578
[33] 常通. 酸碱法提取鳙鱼蛋白及鱼糜凝胶品质的研究[D]. 武汉: 华中农业大学, 2014.
Chang T. Extraction of bighead carp muscle proteins and surimi gel quality by pH-shfit processing[D]. Wuhan: Huazhong Agricultural University, 2014 (in Chinese).
[34] Qiu C J, Xia W S, Jiang Q X. Pressure-induced changes of silver carp (Hypophthalmichthys molitrix) myofibrillar protein structure[J]. European Food Research and Technology, 2014, 238(5): 753-761. doi: 10.1007/s00217-014-2155-6
[35] Lefevre F, Fauconneau B, Thompson J W, et al. Thermal denaturation and aggregation properties of Atlantic salmon myofibrils and myosin from white and red muscles[J]. Journal of Agricultural and Food Chemistry, 2007, 55(12): 4761-4770. doi: 10.1021/jf063045d
[36] Liu F, Tang C H. Emulsifying properties of soy protein nanoparticles: influence of the protein concentration and/or emulsification process[J]. Journal of Agricultural and Food Chemistry, 2014, 62(12): 2644-2654. doi: 10.1021/jf405348k
[37] 刁小琴, 关海宁, 李杨, 等. 高压均质对肌原纤维蛋白乳化特性及结构的影响[J]. 食品与发酵工业, 2019, 45(18): 107-112.
Diao X Q, Guan H N, Li Y, et al. Effects of high pressure homogenization on emulsifying properties and structure of myofibrillar protein[J]. Food and Fermentation Industries, 2019, 45(18): 107-112 (in Chinese).
[38] 冯美琴, 刘雯燕, 孙健, 等. 不同NaCl浓度条件下亚麻籽胶对肌原纤维蛋白凝胶作用力及乳化特性的影响[J]. 食品科学, 2018, 39(22): 26-31.
Feng M Q, Liu W Y, Sun J, et al. Effect of flaxseed gum on the gelling forces and emulsifying properties of myofibrillar protein at different NaCl concentrations[J]. Food Science, 2018, 39(22): 26-31 (in Chinese).
[39] Zou Y, Xu P P, Wu H H, et al. Effects of different ultrasound power on physicochemical property and functional performance of chicken actomyosin[J]. International Journal of Biological Macromolecules, 2018, 113: 640-647. doi: 10.1016/j.ijbiomac.2018.02.039
[40] Kurt Ş. Effects of pH and chitosan on beef emulsion properties[J]. International Journal of Food Science & Technology, 2010, 45(1): 140-146. doi: 10.1111/j.1365-2621.2009.02113.x
